FURI 1.1 FLOATING BODY MOUNT SET IS DESIGNED TO WORK WITH ANY B6.1+ LAYDOWN STYLE TRANSMISSION CASE AND HUB SET. FOR USE WITH 50MM TOURING CAR SHOCKS (NOT INCLUDED)BBG-0050BK AL. BIG BORE 50MM SHOCK SET. FACTORY PART FOR OUR KIT61011 STRIP KIT AND KIT61012 PROJECT FURI! FANTASTIC UPGRADE FOR YOUR KIT61007 AE BREAKOUT KIT.

INCLUDES:

PART NUMBER	DESCRIPTION	QUANTITY
61270	FBM "T" Mount	1
61271	FBM "A"	1
61291	3D Printed FBM Bar	1
61292	Carbon Fiber FBM Bar Support	1
61293	Carbon Fiber FBM Extension	2
61387	2.5 mm Carbon Fiber Arm bushing style link	4
61325	Centering Shim	1
61382	15MM ALUM SHOCK TOWER SPACER W/ BALLSTUD MOUNT	1
61295A	Alum FBM rear hub adapter for furi 1.1	2
3MM LOCK NUT	3M LOCK NUTS FOR HUB ADAPTER	4
3m225BH	3mx25 BH screws for mounting alum adapter to rear hub	4
3MX22MM BH	shock tower screws with 15mm spacer	4
91451	4MM BALLSTUDS	2
3x16mm BH	Attaches the Extensions to the FBM bar	4
3x16mm BH	Attaches the Body Post Holder to the FBM Bar	2
3x25mm FH	Goes through the FBM bar, 4mm spacer and then the "T" Mount with a 3mm Lock nut	2
M3 Lock Nut	Goes through the FBM bar, 4mm spacer and then the "T" Mount with a 3mm Lock nut	2
3x25mm BH	2.5mm Carbon Fiber Arm bushing style link	2
3x12mm FH	Centering Shim Screw Mount on "A"	1
M3 Lock Nut	Used to Tighten Centering Shim Screw on "A" Mount	1
61385	FH ALUM BUSHINGS	2

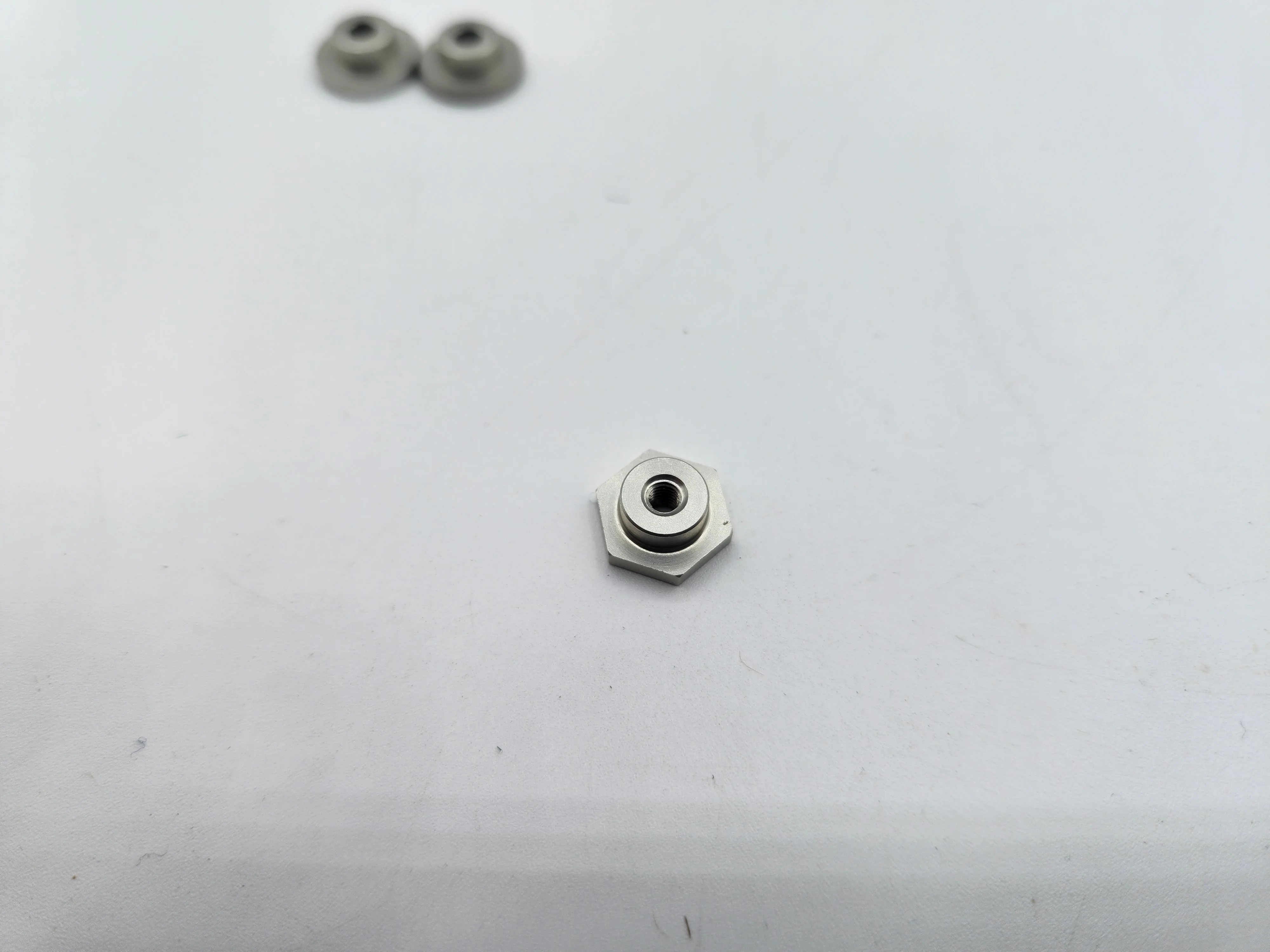

61386	ALUM NUT BUSHINGS	6
3X10 FH	THROUGH HUB ADAPTER INTO NUT ALUM BUSHINGS	4
3X25 FH	THROUGH ALUM BUSHING CARBON FIBER LINK INTO ALUM, NUT BUSHING	2
61156	FBM SPACER FOR CENTERING SHIM	1
3MM WASHER	3MM WASHER FOR FBM LINKS SPACER	8
4mm Spacer	Goes Between the FBM Bar and the "T" Mount	2
4mm Spacer	"A" MOUNT	2
8MM SPACER	SPACER FOR CARBON FIBER EXTENSION	4

YOU WILL NEED TO RUN SHORTER SHOCKS WITH THE BREAKOUT AND STRIP. (50MM)

YOU SHOULD TRY THE YEAH RACING SHOCKS BBG-0050BK.

https://www.fivestarhobbies.com/products/dbb-0050bk-al-big-bore-50mm-shock-set?_pos=1&_sid=37ef57acf&_ss=r
