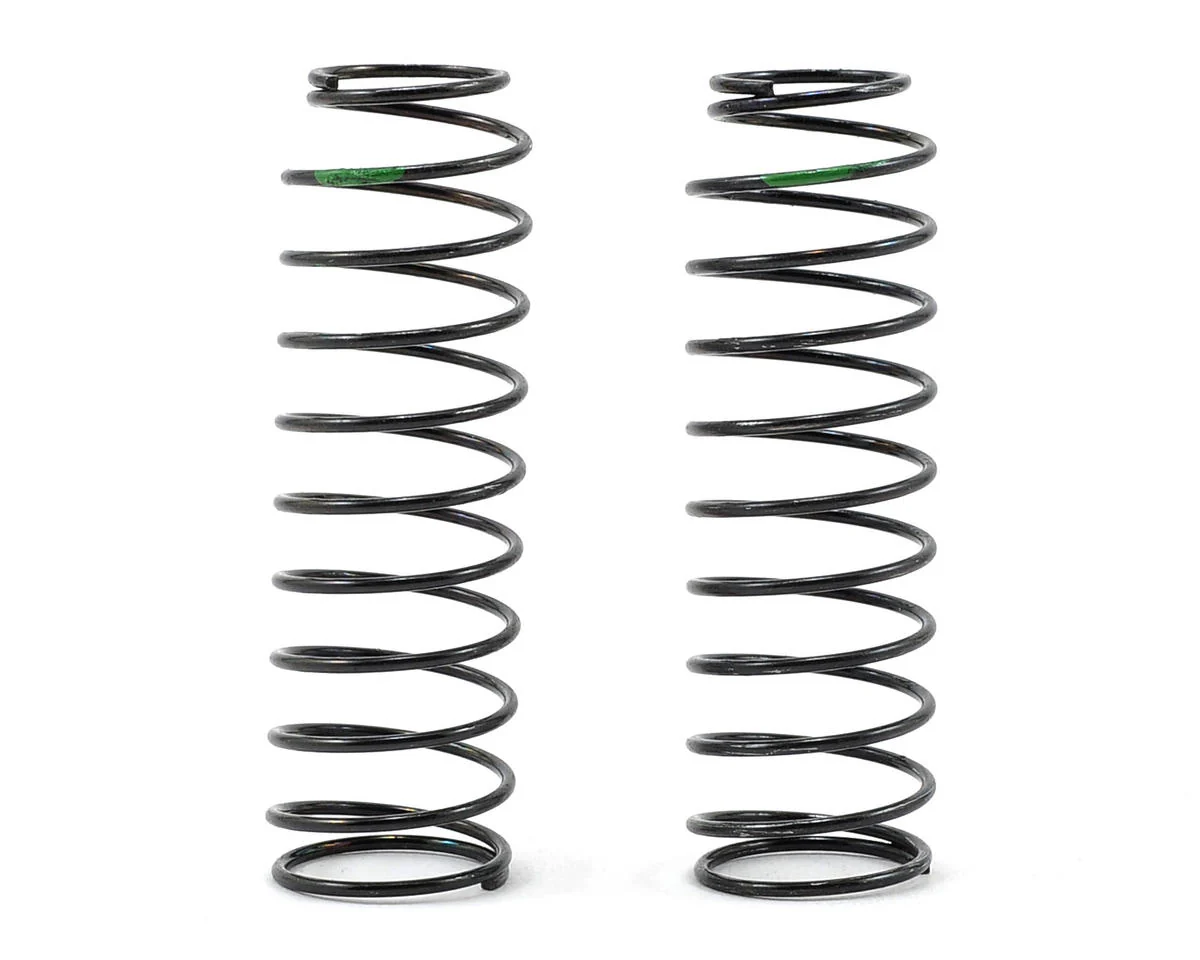

This is a pair of optional Core-RC Long Length Big Bore Shock Springs, and are intended for use with big bore 1/10 scale shocks. These high quality precision made springs allow the car to float over bumps but not roll too much during cornering. The consistent wire diameter means that the characteristics of each spring in the range is similar, giving a consistent performance across the range. The spring stiffness increment between springs is very small, allowing fine adjustment of the suspension.

Features:

• Constant Wire Diameter
• Close Rate Increment
• Easy Identification
• Black Coated
• Precision Ground Ends
• Available as pairs or tuning sets of 5 pairs

Specifications:
Rate: Green/2.2
Coils: 11.75
Length: 62.20
Wire Diameter: 1.23mm

Effects of Shock Spring Changes

Shock Spring	Characteristic
Softer	Increased Chassis Roll Increased Traction Better in Bumpy Conditions More Likely to Bottom Out
Stiffer	Decreased Chassis Roll Decreased Traction Increased Responsiveness

Note: To enable these Big Bore Springs to be used on small bore shocks Core-RC has released two optional converters for the top of the spring, enabling better seating of the spring. The bottom of the spring fits regular small bore shock bottoms.
